Raven · Microbrand · United States
Raven Trekker (Miyota 9015)
- Miyota 9015
- 39 mm × 12.5 mm
- Sapphire crystal
- 200 m water resistance
Movement
- Caliber
- Miyota 9015
- Type
- Automatic
- Tier
- Mid
- Complications
- Date
- Frequency
- 28,800 bph
- Power reserve
- 42 h
- Hacking
- Yes
- Accuracy (factory)
- -10 / +30 s/day
Case
- Diameter
- 39 mm
- Lug to lug
- 48 mm
- Thickness
- 12.5 mm
- Lug width
- 20 mm
- Material
- Steel (316L)
- Hardening
- —
- Water resistance
- 200 m
- Crown
- —
- Case back
- Solid
- Bezel
- 60-minute dive
Crystal & dial
- Crystal
- Sapphire
- Shape
- Box
- Anti-reflective
- Yes (side not stated)
- Lume
- Super-LumiNova (blue)
Bracelet & clasp
- Style
- —
- Links per row
- —
- Solid end links
- —
- Solid links
- —
- Link attachment
- —
- Taper
- 20 → 16 mm
- Quick release
- Yes
- Half links
- —
- Clasp
- —
- Micro-adjust
- —
- Diver extension
- —
Weight
- Head only
- —
- On bracelet
- —
- On strap
- —
Prices
Variants
| Name | Dial | Bezel |
|---|---|---|

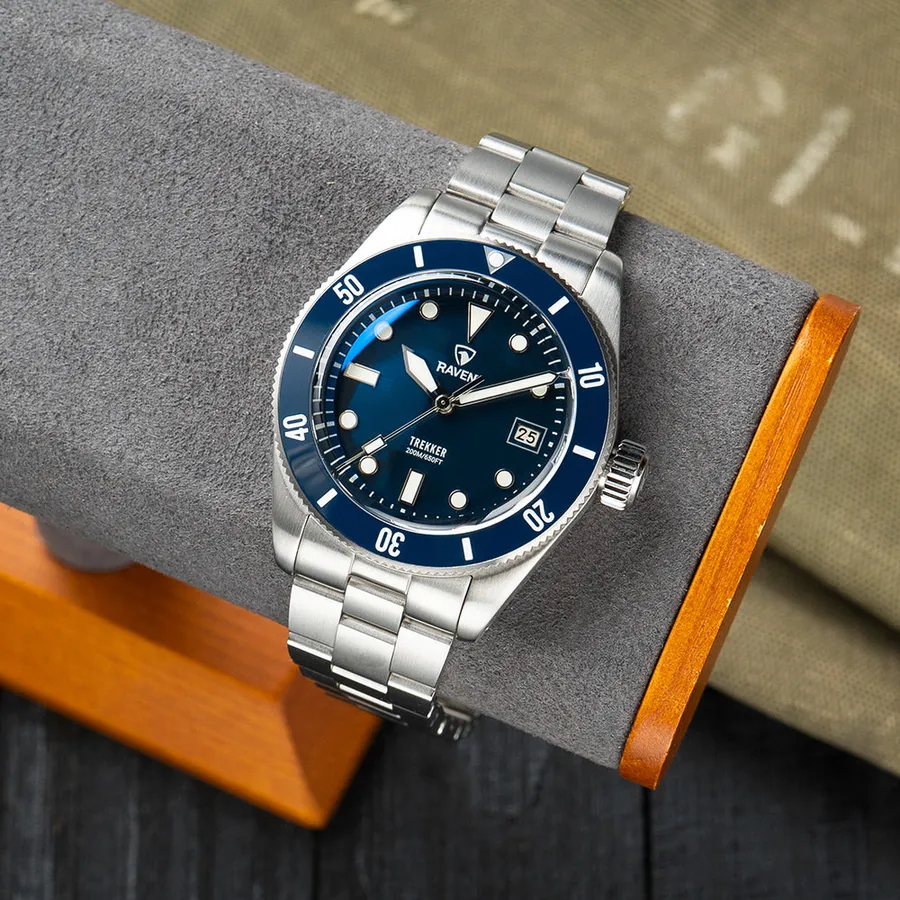

| Vintage Blue | blue | Blue ceramic |
| Vintage Blue Steel Bezel | blue | Stainless steel |
| Gloss Grey | grey | Grey ceramic |
| Gloss Grey Steel Bezel | grey | Stainless steel |
About this entry
63% of key specs known. Missing: weight, hardening, crown, bracelet links, end links, link attachment, clasp micro-adjust.
Date version of the 2024 Trekker relaunch (the blue versions are sold as "the new version of the Vintage", after the Raven Vintage of 2012). Brand spec table: 39mm, 48mm lug to lug, 12.5mm thick (the brand doesn't say whether the box crystal is included), 200m, box sapphire with AR coating, blue Super-LumiNova, bracelet 20mm to 16mm with quick release at the head and an adjustable clasp (type not stated). The table lists "Miyota 9015/9039" for every version; the date versions' text names the 9015 and the dials show a 3 o'clock date. The crystal and caseback were lowered for this generation, which cut the water resistance to 200m. Solid 316L caseback per photo, engraved "2024 - 246/300". The grey versions' pages each say 100 will be made; no count is given for the blue versions. Release year from the caseback and the 2024 store listings; the steel-bezel versions were listed in July 2025. All versions were sold out on 2026-10-30. Bezel direction and clicks are not stated.
Last verified: 2026-10-30. Edit or correct this entry.
Sources
- Raven Trekker, Vintage Blue (product page, specifications) accessed 2026-10-30
- Raven Trekker, Vintage Blue Steel Bezel (product page, specifications) accessed 2026-10-30
- Raven Trekker, Gloss Grey (product page, specifications) accessed 2026-10-30
- Raven Trekker, Gloss Grey Steel Bezel (product page, specifications) accessed 2026-10-30
